| Brand | Austar Fan India |
|---|---|
| Product | HVLS Fan |
| Type | Gearless |
| Blades | 3 Ribs |
| Speed | 100 rpm Maximum ( Variable from 0 to 100 ) |
| Color | Glossy Black, Customizable |

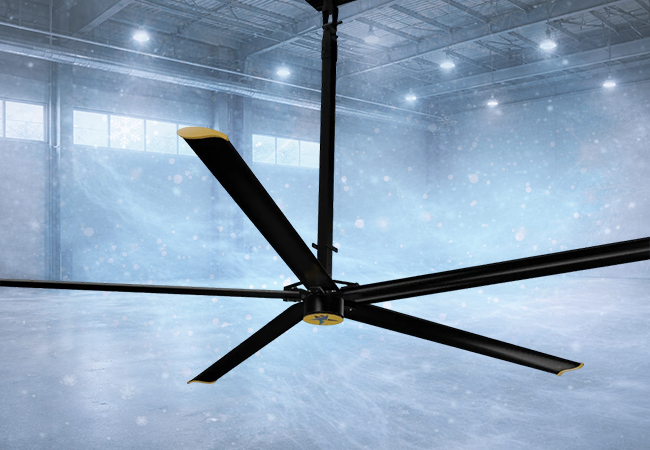

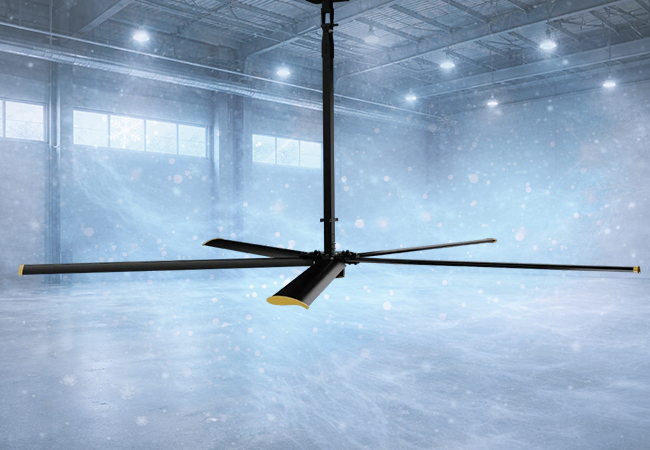

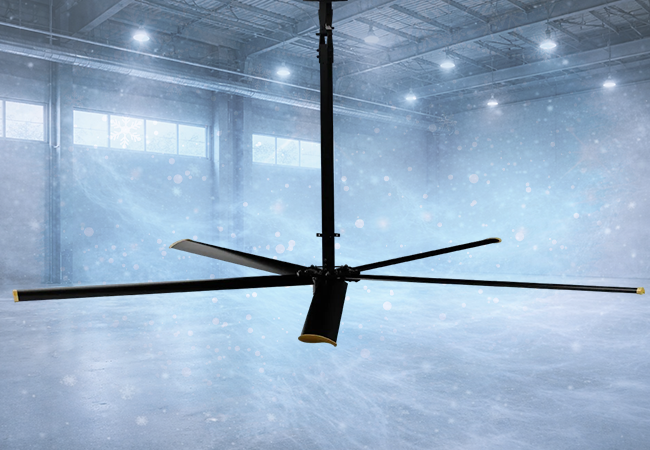

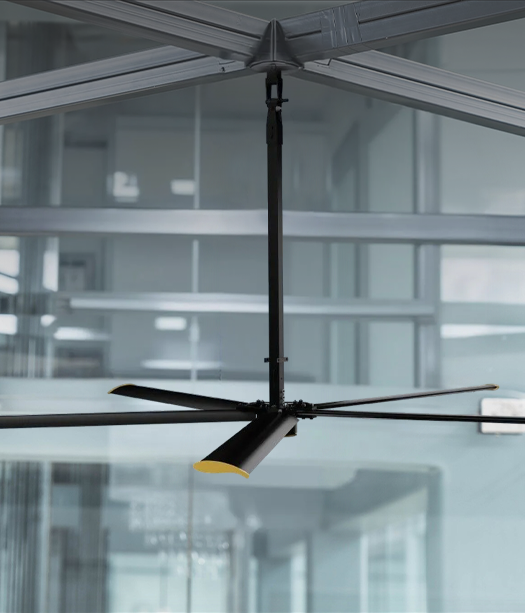

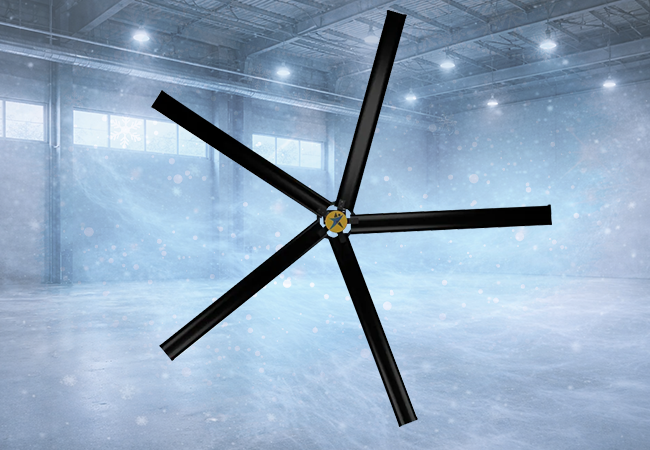

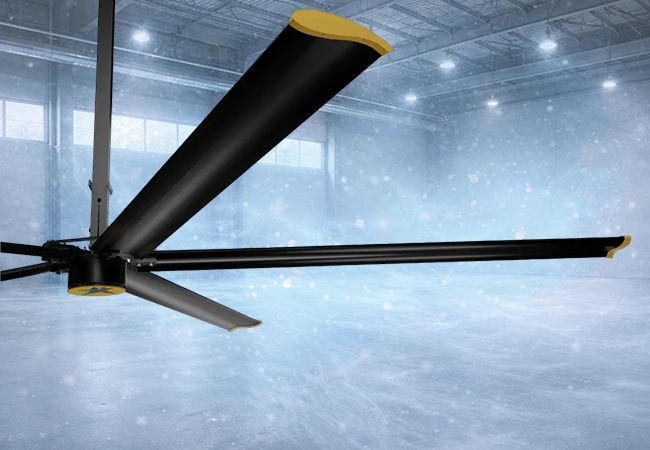

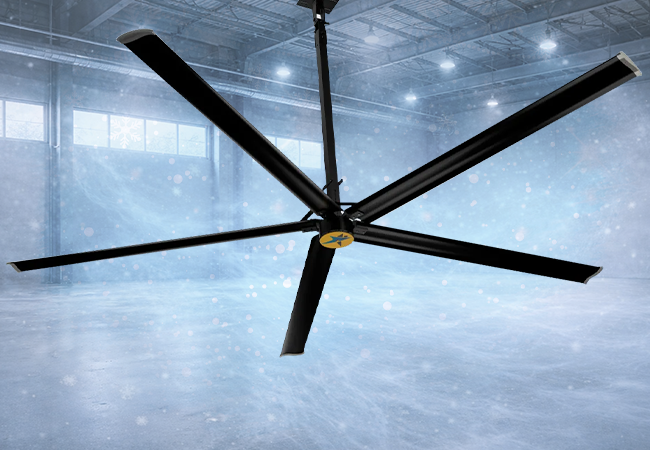

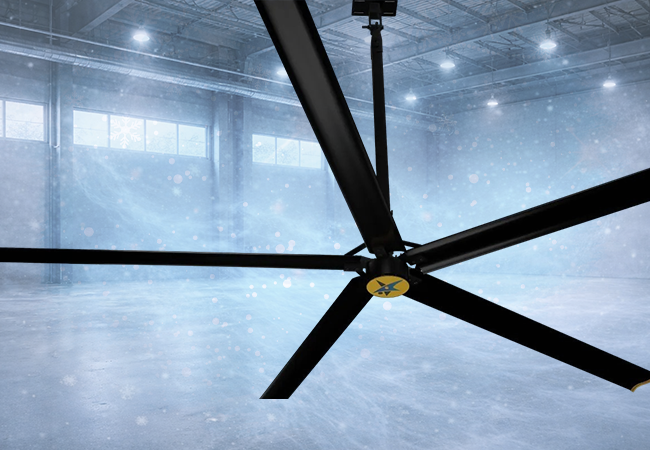

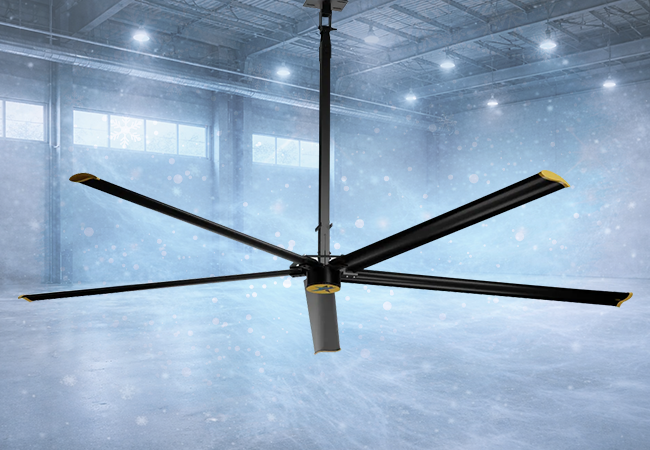

AUSTAR ASGL series Fan are Gearless Type HVLS Fans driven by latest technology Permanent Magnet Synchronous Motor, with five Aero Blades and die casted Blade mounting clamps. ASGL Series Fans have Noise level advantage and efficiency advantages against AS series Fans. Are controlled through Variable Frequency Drive for Reverse / Forward and speed adjustment features. Complies to international safety standards. Available in Standard Matt Black color and customized color options.
| Parameter | Specification | ||
| 1. | Make | “AUSTAR“ | |
| 2. | Model No. | ASGL125 | |
| 3. | No. of Blades | 5 No.s | |
| 4. | Air Volume | 135000 CFM | |
| 5. | Motor Rating | 0.35 KW | |
| 6. | Motor Torque | 80 Nm | |
| 7. | Speed | 100 rpm Maximum ( Variable from 0 to 100 ) | |
| 8. | Noise | < 40 db | |
| 9. | Input Power | Single Phase 50Hz | |
| 10. | Weight | 90 Kgs | |
| 11. | Construction | Frame Structure | M.S. (Powder Coated) |
| Hanging Structure | M.S. (Powder Coated) | ||
| Fasteners | High Tensile 10.9 Grade HEX
Bolts (Unbrako / TVS
make) |
||
| 12. | Blades | Design | Cambered Aerofoil Design |
| M.O.C | Aluminum 6063 (Matte Silver Anodized) | ||
| Sectional Width | 230mm | ||
| Wall Thickness | 2mm | ||
| No. of Ribs | 3 Ribs | ||
| 13. | Drive | Type | Direct Driven PMSM Type |
| 14. | Control Penal | Mounting | Wall Mounting 4 – 5 ft from Floor Level |
| VFD Make | ‘AUSTAR’ Make with 5 Years Warranty | ||
| Enclosure | IP 55, Power Coated Steel cabinet | ||
| Compatibility | BMS Compatibility | ||
| 15. | Safety | Certification | Compliance to CE requirements |
| Bolted Joints | All Nuts are self locking
type Nylock Nuts which eliminates chances of
loosening.
As additional Safety All Bolted joints are wrapped with SS wire Rope. |
||
| 16. | Warranty | 1 Years | |
Austar Technologies is a trusted gearless HVLS fan manufacturer, offering high-performance, energy-efficient solutions for industrial and commercial applications. Our gearless HVLS fans are designed to enhance air circulation, reduce humidity, and create a comfortable indoor environment in warehouses, factories, gymnasiums, and large public spaces. This gearless HVLS fan features 3 Rib Blades and operates at a maximum speed of 100 RPM (variable from 0 to 100 RPM), ensuring whisper-quiet, efficient airflow while minimizing energy consumption. The gearless mechanism eliminates friction, reducing wear and tear, extending lifespan, and ensuring low maintenance costs.
With a sleek glossy black finish and customizable color options, our Gearless HVLS Fan seamlessly integrates into various interiors. Built with high-strength, CE-certified components, it guarantees safety, durability, and exceptional performance. Austar Technologies' HVLS ceiling fans help businesses optimize cooling efficiency, significantly lowering HVAC energy costs while maintaining consistent temperature control. These fans prevent air stratification, reduce heat stress, and improve air quality, making them an ideal choice for industries, commercial buildings, and large open spaces.
A gearless HVLS ceiling fan offers powerful air circulation with minimal energy consumption, reducing electricity costs while enhancing workplace comfort. The gearless design ensures whisper-quiet operation, making it suitable for factories, gyms, and commercial spaces. These large-diameter fans create consistent airflow, preventing hot spots and stale air buildup. By maintaining optimal temperature balance, they improve employee productivity and reduce heat-related discomfort.
The high-quality motor and advanced blade design ensure smooth, vibration-free performance, minimizing maintenance requirements and operational downtime. Additionally, these fans significantly reduce HVAC workload, leading to long-term energy savings. With its customizable color options and aesthetic appeal, the Gearless HVLS Fan seamlessly blends into industrial and commercial environments, offering superior ventilation, cost efficiency, and long-lasting performance.
Gear Moter
German MakeNord / SEW German make. IP 55 Protection, IE2 Efficiency, with Reinforced Bearing.
Blade Mounting Hub
German MakeAluminium HE9 Grade. Die Casted Single Piece with Radiography tested.

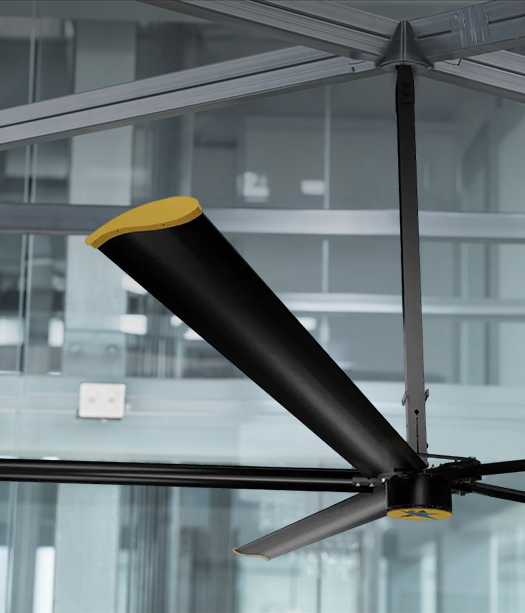

Blades
German MakeAluminium HE9 Grade. Having broadest blade section in market. Having Two Ribs for extra strength.
Paint
Hot Deep GalvanizedDriven by VFD of reputed make i.e Lenze / Danfoss / Crompton.
Control : Operated through KeyPad having easy and long life keys for Start / Stop, Reverse / Forward and Speed increase / decrease. Cable connection are through plug and play type for easy installation, maintenance and trouble free long lasting operation.
Models are CE certified by third party agency ‘TUV Nord’

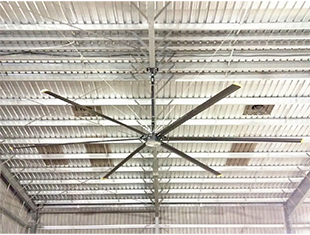

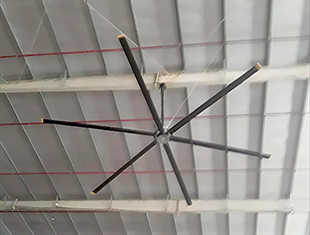

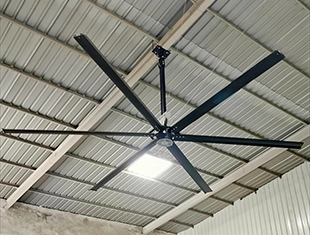

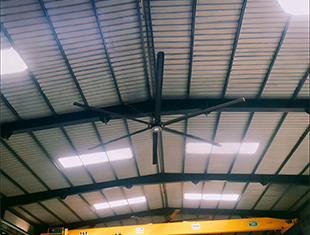

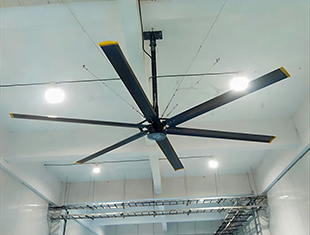

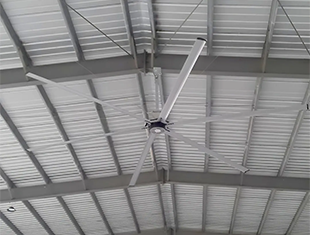

Austar HVLS Fans are designed to provide effective cooling and superior air circulation in large industrial and commercial spaces. These high volume low speed fans are ideal for improving air quality, reducing heat, and creating a comfortable environment in various applications. HVLS fans are widely used in automobile manufacturing units, ensuring proper ventilation and temperature control. In airports and railway stations, they help maintain a pleasant atmosphere for travelers by circulating fresh air efficiently. Industrial and commercial buildings benefit from these fans as they enhance worker productivity by reducing humidity and heat buildup.

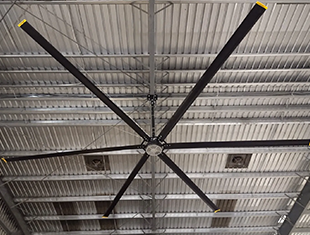

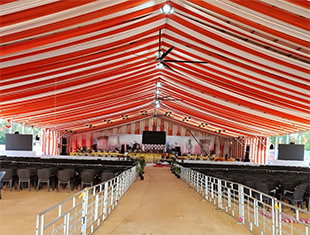

In fitness gyms and community halls, HVLS fans provide consistent airflow, preventing stuffiness and ensuring a comfortable workout or event experience. Canteens and auditoriums also benefit from these fans, as they help regulate temperature and improve air quality in high-traffic areas. Industrial workshops use HVLS fans to remove humid air while keeping workstations cool and safe. Austar HVLS Fans offer an energy-efficient solution for maintaining optimal airflow, reducing reliance on HVAC systems, and lowering operational costs. Whether for commercial or industrial applications, these fans provide consistent cooling, enhance comfort, and ensure a healthier indoor environment.
